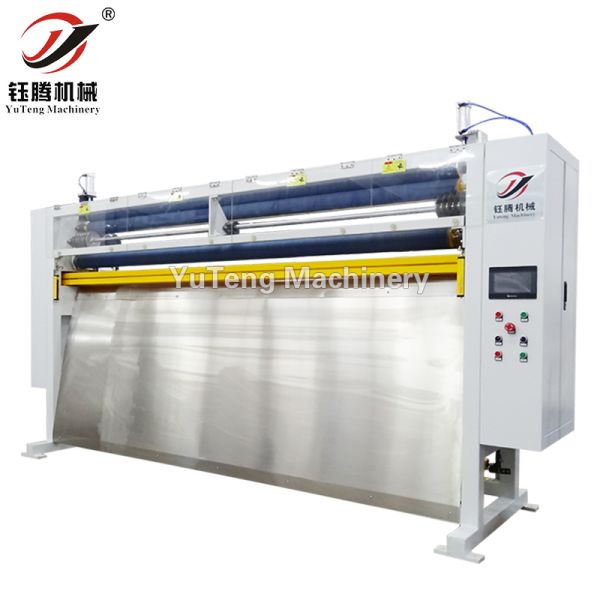

Automatic Mattress Quilting Fabric Panel Cutting Machine

Name: Automatic Mattress Quilting Fabric Panel Cutting Machine
Brand: YuTeng
Price: 1 USD

Quality Automatic Mattress Quilting Fabric Panel Cutting Machine for sale

Place of Origin : Guangdong, China

Brand Name : YuTeng

MOQ : 1

Screen size : 7" touch screen

Hidden slitting blades : Yes

Electric controls : Length and width

Feed-in top : With article points

Y-dimension encoder : For counting length

Dimensions : 3700x1200x1940 mm

Cutting length : 600-2100 mm or unlimited

Cutting width : 80-2400 mm

Thickness : 60 mm

Speed : 10 m/min

Power : 2.6 KW

Air pressure : 0.4-0.8 Mpa

Voltage : 380V/50HZ, 220V/60HZ, 3-Phase

Weight : 950 KG

Core components : PLC, Motor

Contact Now

♦ Product main features :

1,7”touch screen,large screen for ease of operation

2,Hidden slitting blades are more convenient and safer

3,Electric controls for length and width of cross cut which make operations more human

4,Feed-in top with article points for pressure rolle.The pressure will be even,and feeding will be leveling off.The slitting cut will be more smooth,especially for the edge trimming of thinner materil

5,Y-dimension with encoder for counting length.It can cut materials length Use the conveyor belt mechanical discharge.It will be convenient to fold material and save artificial.

♦ Purpose :

It is used to crosscut,slitting and edge trimming the quilted fabric,and usually works in tandem with

the quilting machine and rolling device,but it can also run alone.

♦ Technical Parameters :

Dimension(L x W x H)	370012001940(mm)
Effective cutting length	600-2100 mm or unlimited
Effective cutting width	80-2400 mm
Thickness	60 mm
Speed	10 m/min
Power	2.6 KW
Air pressure	0.4-0.8 Mpa
Voltage	380V/50HZ,220V/60HZ,3-Phase
Weight	950 KG

♦ Effect diagram :

♦ Certificate :

♦ Company pictures :
